Inverex ESS 5.3 Series All-in-One Energy Storage

  • Home
  • ESS 5.3 Series

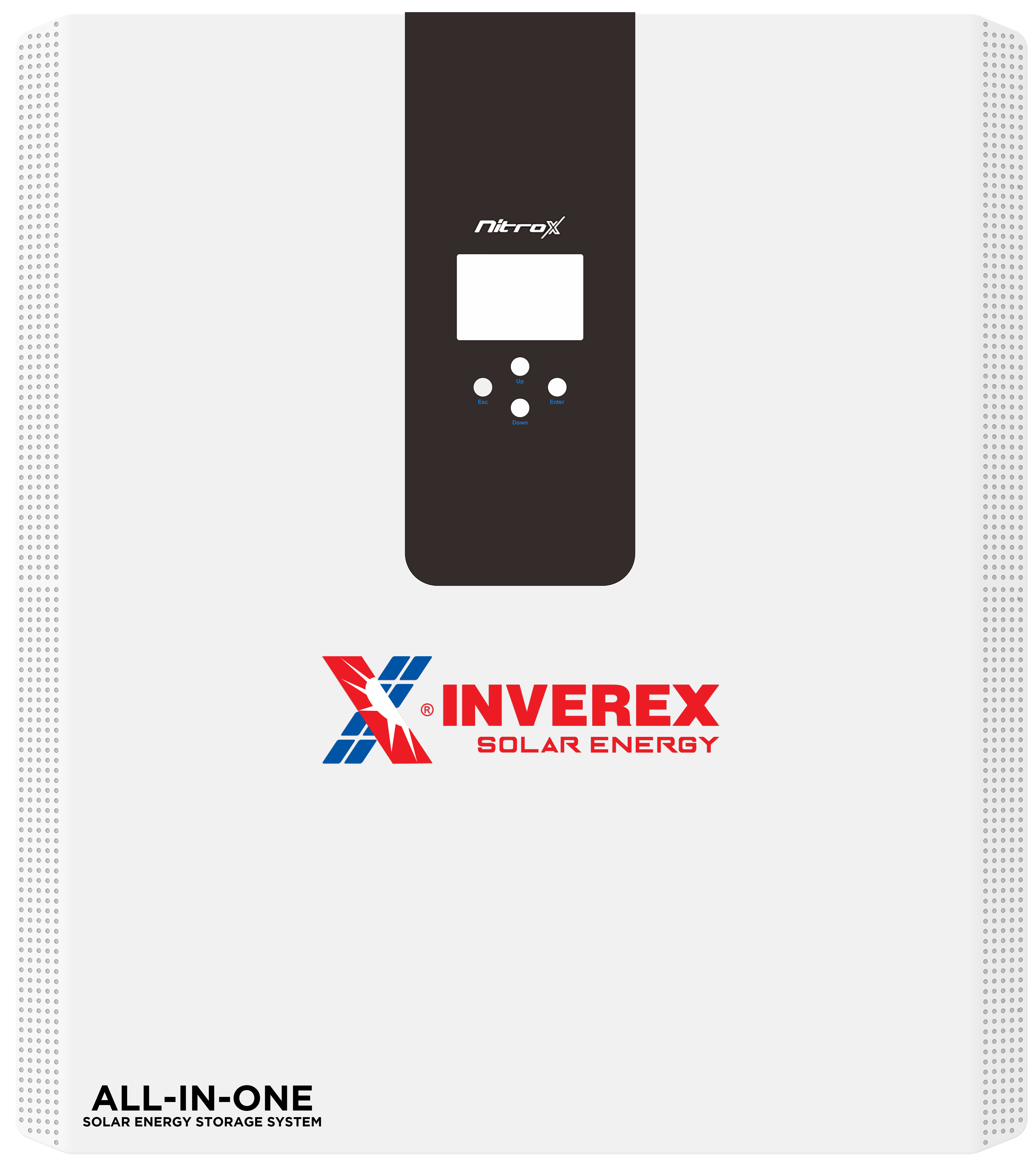

Inverex ESS 5.3 Series

ESS 5.3 Series (3.6kW/5kW Inverter + 5.3kWh LiFePO₄ Battery)

(5 customer reviews)

The Inverex ESS 5.3 Series integrates a high-performance hybrid inverter with a powerful 5.3kWh lithium iron phosphate battery, delivering an all-in-one energy storage solution. This space-saving unit is ideal for both residential and small commercial applications, providing seamless power management with smart load handling and grid interaction.

Key Features
  • All-in-One Compact Design: Wall-mount hybrid solution (3.6kW/5kW inverter + 5.3kWh LFP battery)
  • Flexible Expansion: Scalable up to 16 units (164.3kWh); additional 5.3kWh LV battery supported
  • Battery Performance: Over 6000 cycles with high usable energy (4.79kWh)
  • Fast Operation: High charge/discharge up to 100A; 4ms switching time
  • Smart BMS: Built-in battery protection with peak shaving and load control
  • High Efficiency: MPPT >99%, inverter efficiency up to 97%
  • Touch Control: LCD interface with WiFi/Bluetooth for remote monitoring
  • Safety & Quiet: IP65 protection, natural cooling, <45dB silent performance
  • Wide Temperature Support: -10°C to 55°C operating range
  • Certified Safety: IEC, UN38.3, VDE and more international standards
Delivery & Warranty
  • Delivery in 4-5 business days
  • Comes with Inverex product warranty and technical support
