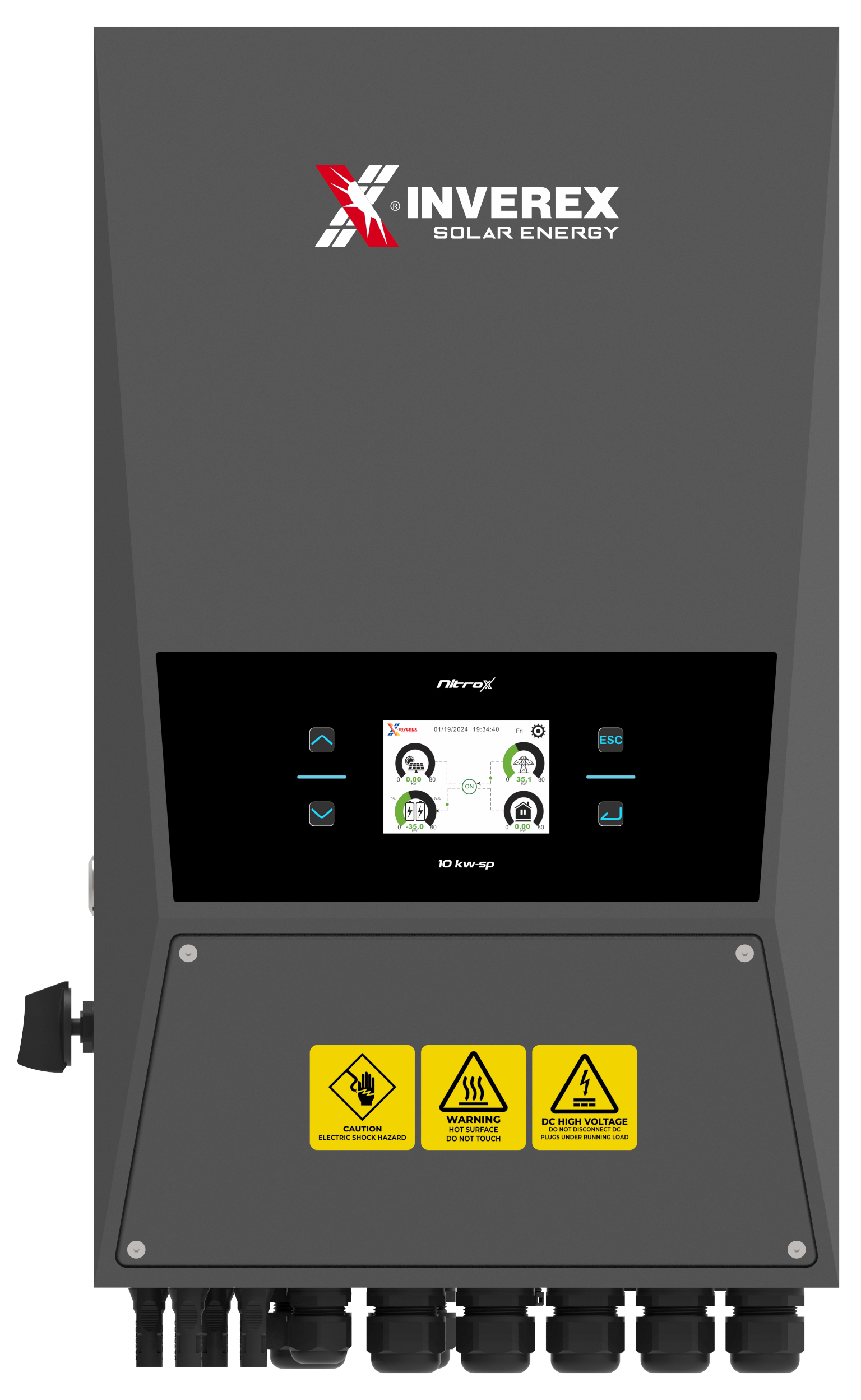

NitroX 10KW SP Hybrid Inverter

Key Features

• Ultra-High PV Input: Up to 16,000W with dual MPPT (150–425VDC)
• 210A Max Charge/Discharge: Fast, powerful battery performance
• Parallel Ready: Scalable to 16 units for large installations
• Dual MPPT Trackers: Independent strings with 34A+34A protection
• Robust Output: 10KW continuous, 11KVA peak for surge loads
• Touch LCD Panel: Colorful, outdoor-rated IP65 interface
• AC Coupling: Retrofit to existing grid-tied solar systems
• Smart Battery Scheduling: 6 programmable periods for charging/discharging
• Generator Integration: Compatible with diesel generators for backup
• High Efficiency: 97.6% inverter & >99% MPPT, <0.5% DC ripple
• Rugged Conditions Support: Operates at -40°C to +60°C and up to 2000m altitude
• Advanced Protections: RCD, surge, thermal, reverse polarity, etc.
• Smart Monitoring: RS485/RS232/CAN + optional WiFi, Bluetooth, 4G, LAN
• Silent & Efficient: <30 dB noise with efficient thermal management
• 5-Year Warranty: International standard compliance (IEC, EMC)

Shipping & Installation

• Nationwide delivery within 3–5 working days
• Professional installation and system configuration available
