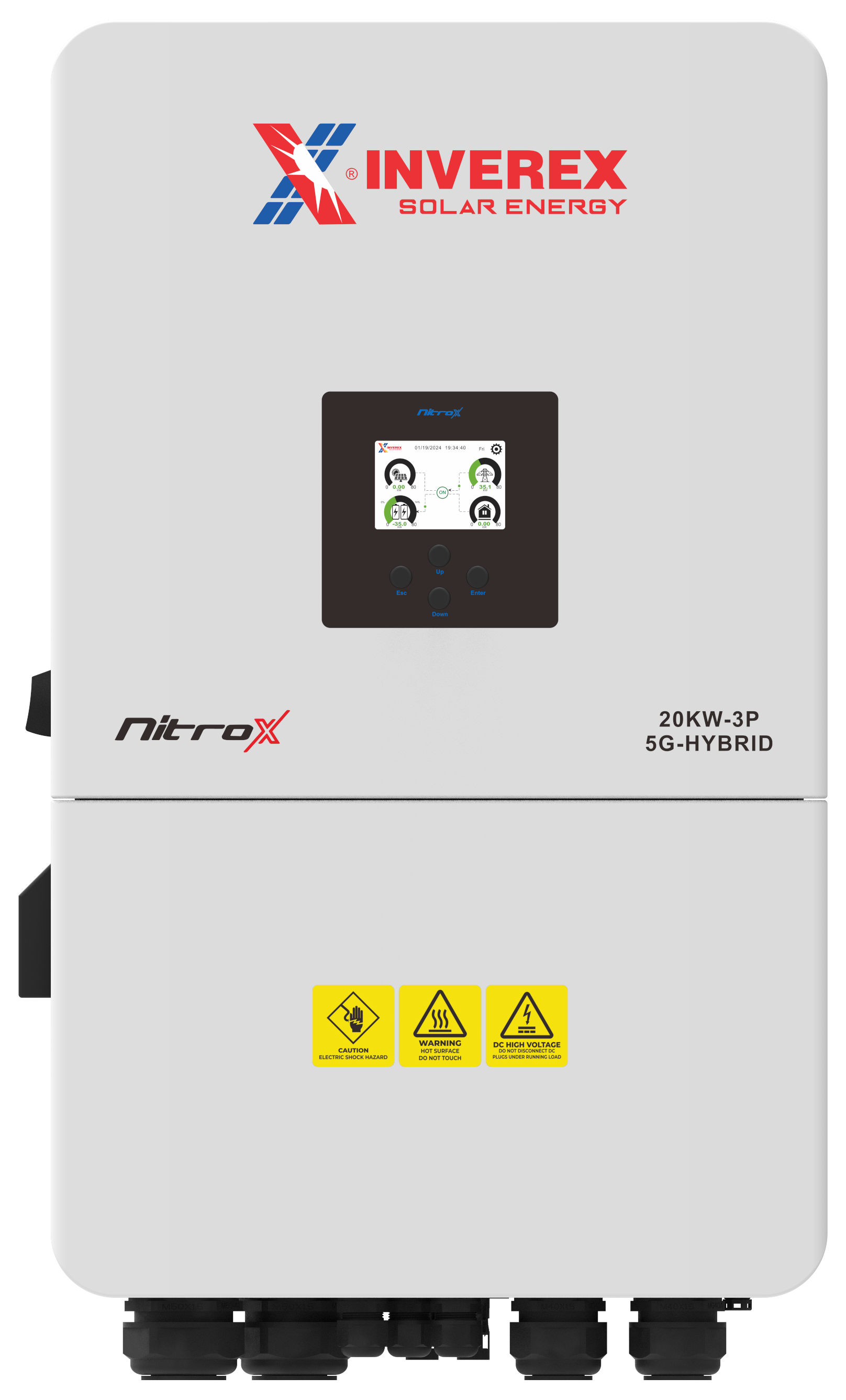

NitroX 20KW 3P 5G LV Hybrid Inverter

Key Features

• 30KW PV Input Capacity: Handles up to 30,000W of solar with dual MPPTs and a wide 160–650VDC input range.
• 350A Charge & Discharge: Massive battery handling capability for demanding power profiles.
• 3-Phase 100% Unbalanced Output: Supports up to 50% rated power per phase for flexible load handling.
• AC Coupling: Seamlessly integrates into existing grid-tied setups without reconfiguring solar arrays.
• Parallel Operation: Supports up to 10 units for scalable hybrid systems.
• 48V Battery Compatibility: Supports both lead-acid and Li-ion batteries with smart BMS auto-detection.
• Dual MPPT with Multi-String Support: 2 MPPTs (2/2+1) for independent string management and optimal energy yield.
• Color LCD & IP65 Housing: Waterproof, dustproof, and easy-to-navigate touchscreen interface.
• 6-Slot Programmable Schedule: Tailor charge/discharge cycles to your usage pattern or time-of-day tariff.
• Diesel Generator Compatibility: Store energy from DGs efficiently in off-grid or backup power scenarios.
• High Conversion Efficiency: 97.6% inverter efficiency, >99% MPPT efficiency, and <0.5% DC ripple.
• Advanced Safety Protections: Surge, overcurrent, reverse polarity, insulation, RCD, arc fault & ground fault protection.
• Real-Time Monitoring: RS485, RS232, CAN + WiFi, Bluetooth, 4G, LAN support for remote diagnostics and data.
• Extreme Climate Support: Works in -40°C to +60°C, up to 3000m elevation and full humidity tolerance.
• 5-Year Warranty: Assured performance and safety with international compliance (IEC, EMC).

Installation & Delivery

• Delivery available across Pakistan within 3–5 business days
• Installation and commissioning services offered by certified technicians
