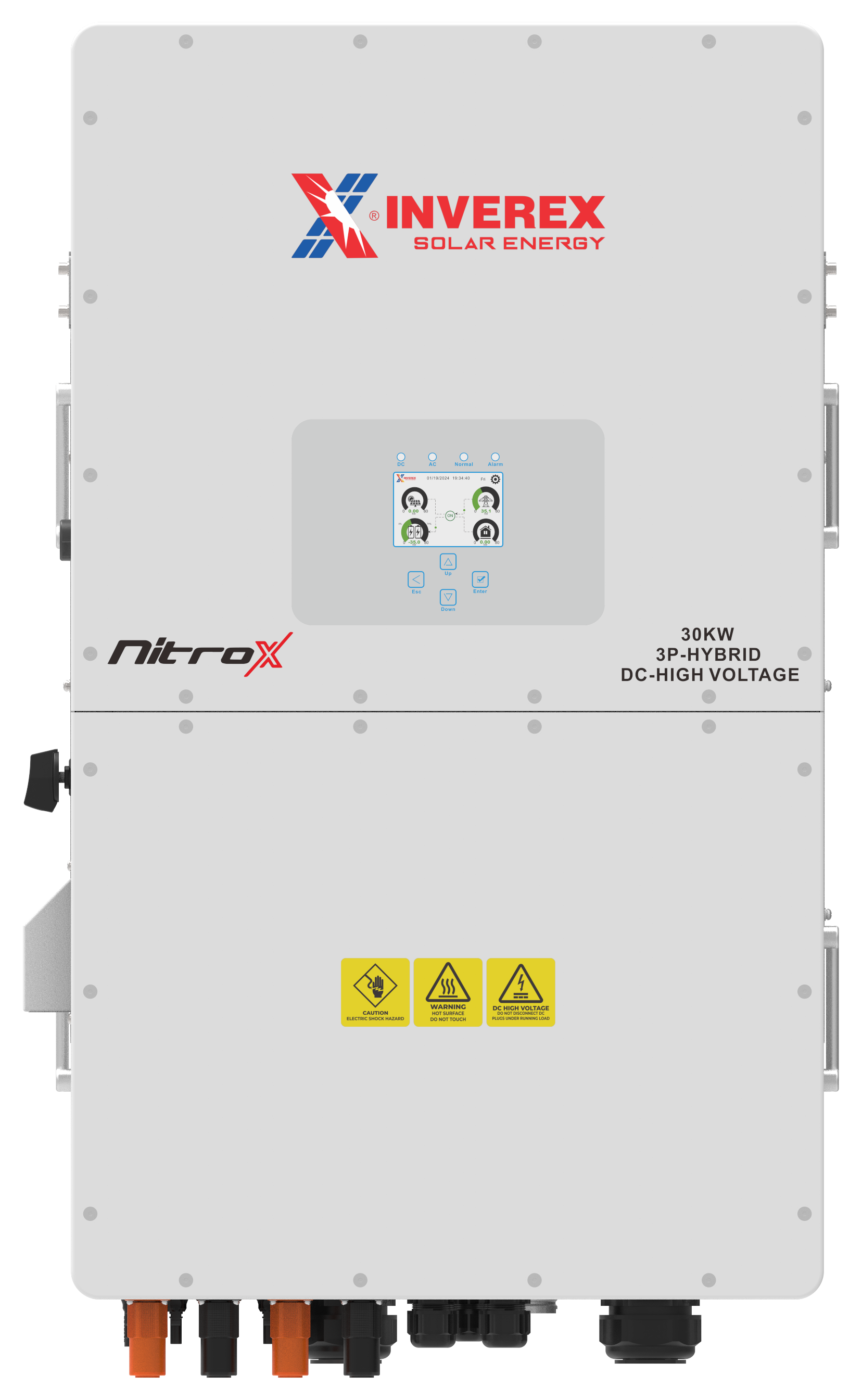

NitroX 30KW 3P Hybrid (DC-High Voltage)

Top Features

• 48KW PV Input: Triple MPPTs (3/2+2+2) ensure maximum energy capture from complex solar arrays.
• High Voltage Battery Range: Supports 160–800VDC lithium systems for superior energy efficiency.
• 3-Phase Output with Unbalanced Load Handling: Delivers up to 50% rated power per phase, ideal for irregular load setups.
• Massive Power Output: 30KW rated / 33KVA apparent power, plus 200A AC passthrough capability.
• Parallel Ready (Up to 10 Units): Seamlessly scalable to 300KW+ setups with unified battery management.
• AC Coupling Support: Perfect for retrofitting existing grid-tied or hybrid systems.
• Fast 100A Charge/Discharge: Dual 50A channels ensure rapid energy exchange with large battery banks.
• MPPT Range 150–850VDC: Captures energy from sunrise to sunset across a wide voltage spectrum.
• Smart Charging Scheduler: 6 programmable time slots for custom load shifting and off-peak optimization.
• Durable IP65 Design: Outdoor-ready, dustproof, waterproof with vibrant color touchscreen UI.
• Wide Operating Range: Works flawlessly from -40°C to +60°C and up to 2000m elevation with 100% humidity tolerance.
• Exceptional Efficiency: 97.6% inverter, >99% MPPT, and <3% Total Harmonic Distortion (THDi).
• Safety First: Multiple protections including overvoltage, surge, insulation faults, thermal issues, RCD, and islanding detection.
• Smart Communications: RS485, RS232, CAN with support for WiFi, 4G, LAN, Bluetooth for live remote monitoring.
• Global Compliance: Backed by Inverex's 5-year warranty and certified to international IEC/EMC standards.

Delivery & Installation

• Fast delivery across Pakistan within 3–5 working days
• Professional installation by certified Inverex partners available on request
