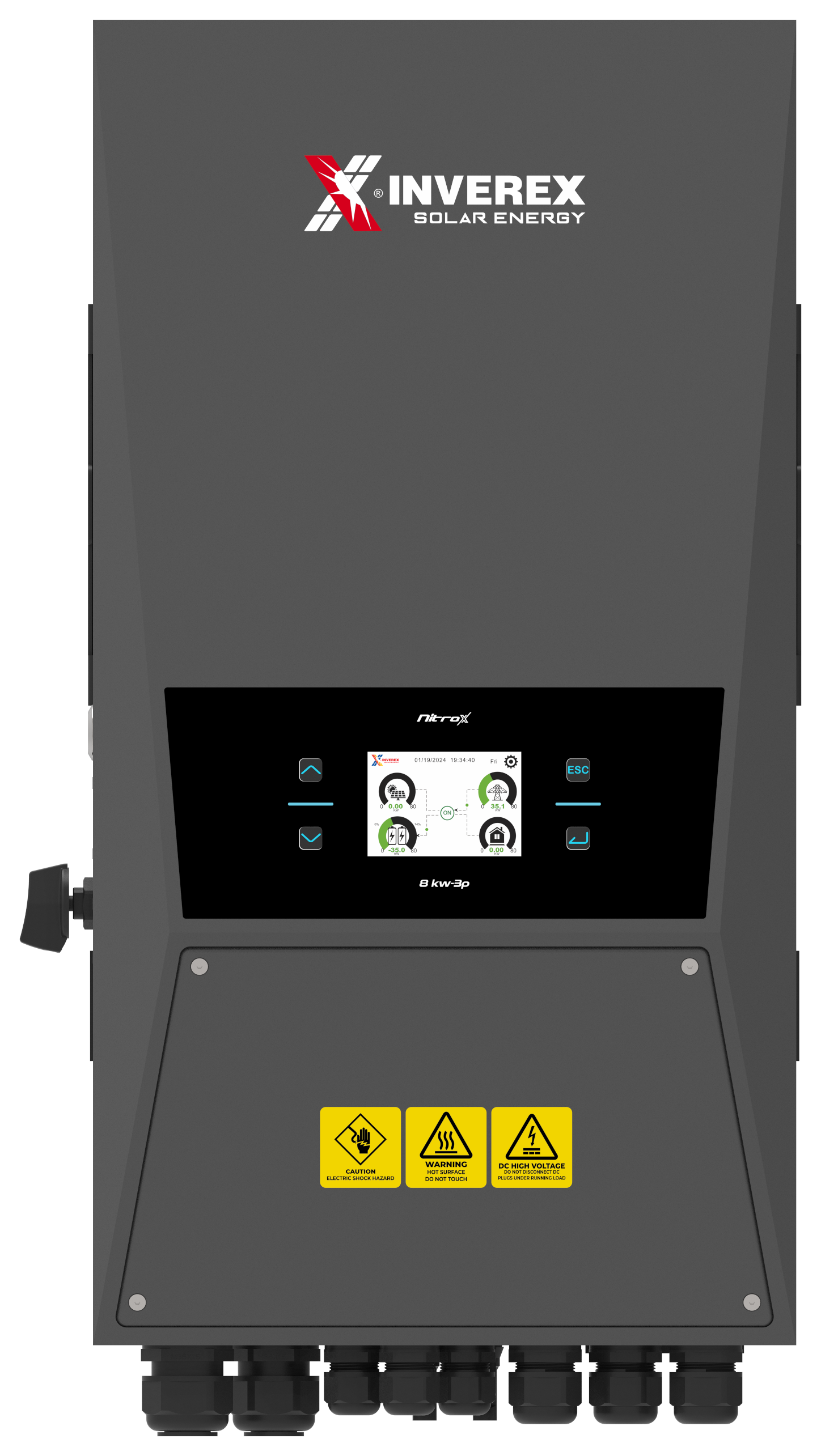

NitroX 8KW 3P Hybrid Inverter

NitroX 8KW 3P Hybrid Inverter

(9 customer reviews)

Engineered for industrial strength and maximum efficiency, the NitroX 8KW 3P Hybrid Inverter delivers unmatched 3-phase performance, powerful charging, and high-capacity solar support—ready for rugged commercial and hybrid setups.

Key Features
  • True 3-Phase Unbalanced Output: Each phase supports up to 50% of rated power
  • 12.8KW PV Input: Dual MPPT (200–650VDC) with short-circuit protection
  • 190A Max Charge/Discharge: Works with lead-acid and lithium-ion batteries
  • Dual MPPTs: Independent tracking (2/1+1 config)
  • Parallel Ready: Up to 10 units on-grid/off-grid
  • Touchscreen Display: Bright, intuitive interface with IP65 protection
  • AC Coupling: Hybrid-ready for retrofit applications
  • Battery Scheduling: 6 programmable time slots for optimization
  • Diesel Generator Support: Extend runtime with DG input
  • 97.6% Peak Efficiency: Plus <0.5% DC ripple, >99% MPPT accuracy
  • Extreme Conditions Ready: Operates in -40°C to +60°C, 3000m altitude
  • Full Protection Suite: RCD, thermal, surge, islanding, polarity, overcurrent
  • Smart Monitoring: RS485/RS232/CAN + optional WiFi/4G/LAN
  • 5-Year Warranty: Certified with global safety standards
Shipping & Installation
  • Delivery available across Pakistan within 3–5 working days
  • On-site installation and hybrid integration support available
